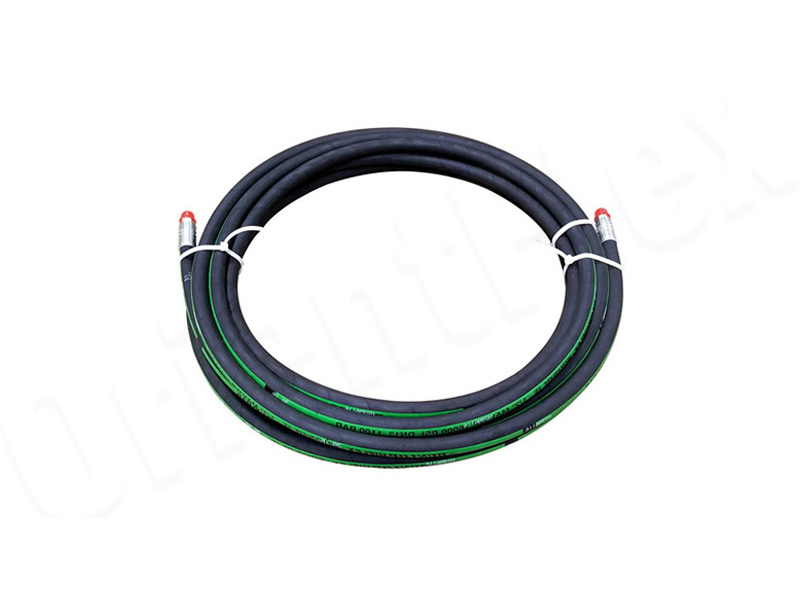

Ultra High Pressure Hose
Ultra High Pressure Hose
Untra high pressure hose is made from polyamide fibre with high pressure resistance. While the max working pressure reaches 280 Mpa. It is ideal for industrial cleaning work and hydraulic pressure test.
Ultra High Pressure Hose Structure
Tube: DN 3-8: Polyoxymenthylene; DN 10-25: Polyamide fibers
Reinforcement: spiral layers and high tensile steel wire braid
Cover: Pin pricked and anti-abrasion PU
Application: Industrial cleaning, checking the pressure of injection in diesel engines, hydraulic tensioners and testing devices.
Ultra High Pressure Hose
Ultra High Pressure Hose is a comprehensive range of fully engineered polymer hoses featuring combination spiral layered steel reinforcement. Each hose family has been carefully developed with bespoke insert and ferrule designs to maintain the highest integrity of both the components and the final assembly.
Ultra High Pressure Hose Application
UHP hose is used for waterjet cutting, cleaning of tubes and heat exchangers, removing paint and dirt from reservoirs, containers and ships etc, industrial cleaning, checking the pressure of injection in diesel engines.
SSB 201
| ID | OD | WP | BP | Min BR | Weight | |||||
| inch | mm | mm | mpa | bar | psi | mpa | bar | psi | mm | kg/m |
| 1/4 | 6 | 13.2 | 110 | 1100 | 15950 | 280 | 2800 | 40600 | 70 | 0.23 |
| 5/16 | 8 | 14.5 | 100 | 100 | 14500 | 250 | 2500 | 36250 | 90 | 0.31 |
| 3/8 | 9.7 | 18 | 80 | 800 | 11600 | 200 | 2000 | 29000 | 120 | 0.43 |
| 1/2 | 12.7 | 21 | 70 | 700 | 10150 | 175 | 1750 | 25375 | 150 | 0.6 |
SSB 401
| ID | OD | WP | BP | Min BR | Weight | |||||
| inch | mm | mm | mpa | bar | psi | mpa | bar | psi | mm | kg/m |
| 1/4 | 6 | 15 | 160 | 1600 | 23200 | 400 | 4000 | 58000 | 80 | 0.43 |
| 5/16 | 8 | 17 | 150 | 1500 | 21750 | 375 | 3750 | 54375 | 90 | 0.55 |
| 3/8 | 9.7 | 20 | 140 | 1400 | 20300 | 350 | 3500 | 50750 | 100 | 0.89 |
| 1/2 | 12.7 | 24 | 130 | 1300 | 18850 | 325 | 3250 | 47125 | 110 | 1.2 |
SSB 200
| ID | OD | WP | BP | Min BR | Weight | |||||
| inch | mm | mm | mpa | bar | psi | mpa | bar | psi | mm | kg/m |
| 1/8 | 3.2 | 7 | 100 | 1000 | 14500 | 250 | 2500 | 36250 | 60 | 0.07 |
| 5/32 | 4 | 8.2 | 110 | 1100 | 15950 | 275 | 2750 | 39875 | 75 | 0.11 |
| 3/16 | 5 | 10 | 100 | 1000 | 14500 | 250 | 2500 | 36250 | 95 | 0.12 |
| 1/4 | 6.3 | 11.8 | 100 | 1000 | 14500 | 250 | 2500 | 36250 | 110 | 0.21 |
| 5/16 | 8 | 13.5 | 90 | 900 | 13050 | 225 | 2250 | 32625 | 120 | 0.26 |
SSB 400
| ID | OD | WP | BP | Min BR | Weight | |||||
| inch | mm | mm | mpa | bar | psi | mpa | bar | psi | mm | kg/m |
| 1/8 | 3 | 9.5 | 200 | 2000 | 29000 | 500 | 5000 | 72500 | 110 | 0.14 |
| 5/32 | 4 | 13.8 | 200 | 2000 | 29000 | 500 | 5000 | 72500 | 130 | 0.24 |
| 1/4 | 6.3 | 15.2 | 150 | 1500 | 21750 | 375 | 3750 | 54375 | 180 | 3.3 |
| 5/16 | 7.8 | 17.5 | 140 | 1400 | 20300 | 350 | 3500 | 50750 | 200 | 4.4 |
| 3/8 | 9.6 | 20.2 | 130 | 1300 | 18850 | 325 | 3250 | 47125 | 200 | 710 |
| 1/2 | 11.9 | 23.4 | 120 | 1200 | 17400 | 300 | 3000 | 43500 | 220 | 900 |
| 3/4 | 19 | 34 | 100 | 1000 | 14500 | 250 | 2500 | 36250 | 260 | 1350 |
